Description

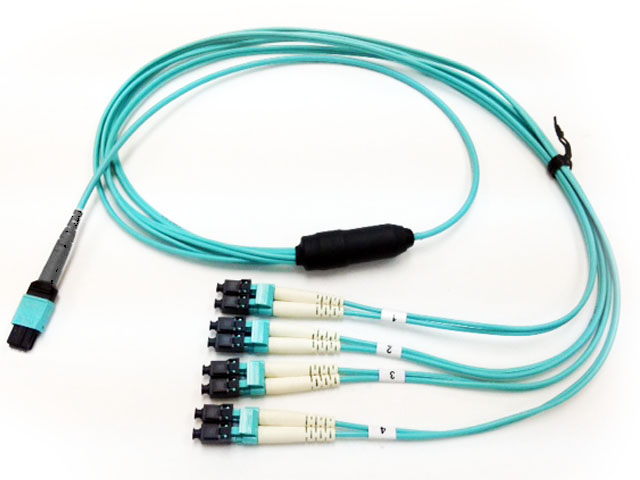

• It is 4x10Gb to 1x40Gb trunk / jumper solution;
• Only 8 fibers are required;
• The total length is customerized;
• The ordering part number is: RH92729R1DCB9H1-XXX where XXX is total length

Materials

• 8 Cores 50/125 OM4 OFNR 3mm Round Aqua Cable;
• MTP or MPO 12 Core Female Connector x 1;
• LC duplex x 4 pairs;

Loss Parameters

• MTP/MPO end: max <0.35dB@850nm;
• MTP/MPO end: typical <0.10dB@850nm;
• LC ends: max <0.25dB@850nm

Wiring diagram
