Description

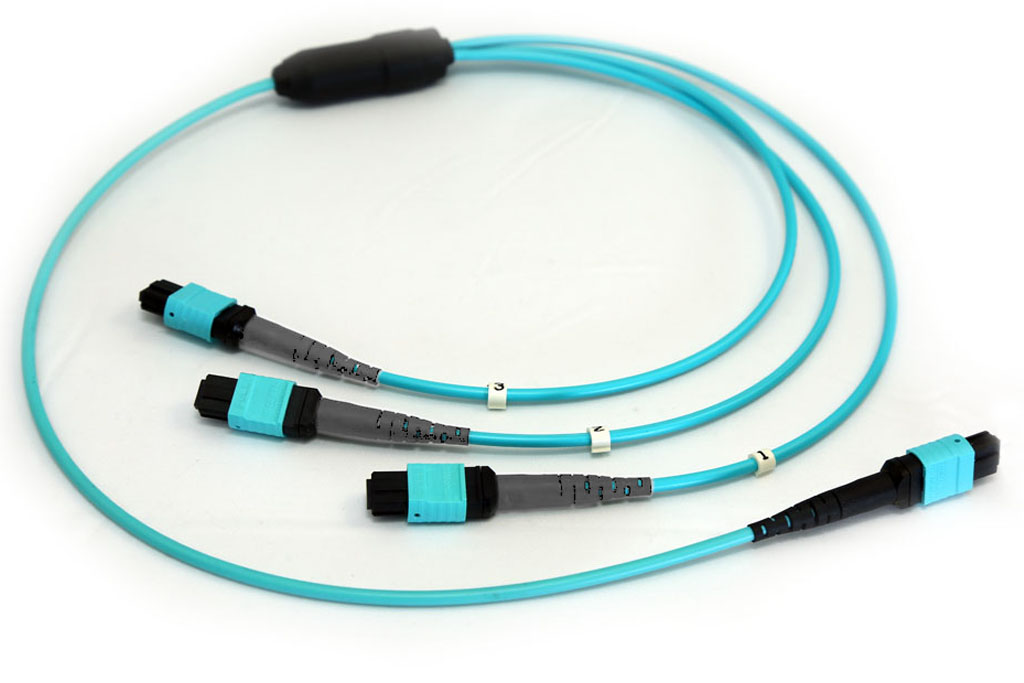

• It is 3x40Gb to 1x120Gb trunk / jumper solution;
• 24 fibers are required;
• The total length is customerized;
• The ordering part number is: RH88729R1GGH1B9-XXXA where XXX is total length

Materials

• 24 Cores 50/125 OM4 mini OFNR 3mm Round Aqua Cable;
• 8 Cores 50/125 OM4 mini OFNR Fanout;
• MTP or MPO 24 Core Female Connector x 1;
• MTP or MPO 12 Core Female Connector x 3.

Loss Parameters

• MTP/MPO end: max <0.35dB@850nm;
• MTP/MPO end: typical <0.10dB@850nm.

Wiring diagram
