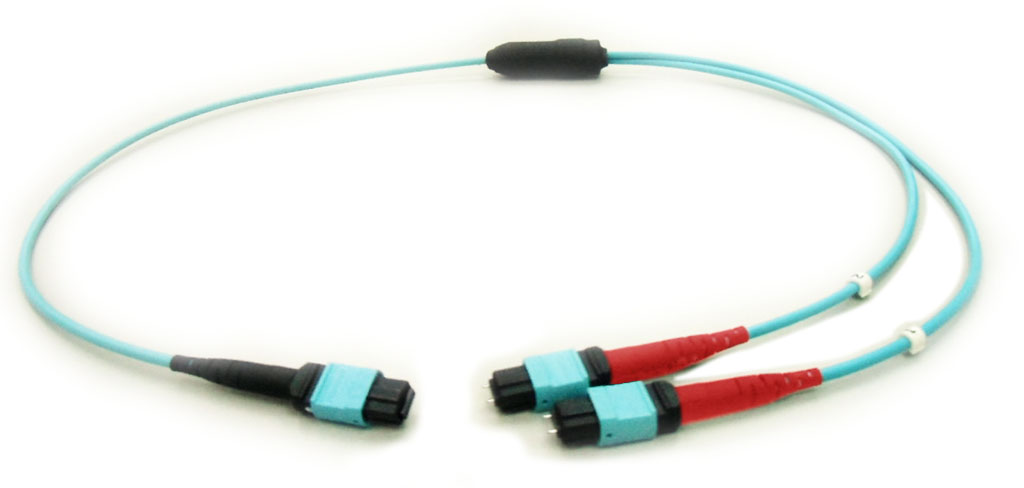

MTP24 - 2xMTP12

Description

  • It is 12 pairs of TX/RX trunk / jumper solution;
  • 24 fibers are required;
  • The total length is customerized;
  • The ordering part number is: RM88739R1GGH1B9-XXXA where XXX is total length

Materials

  • 8 Cores 50/125 OM4 OFNR 3mm Round Aqua Cable;
  • MTP or MPO 24 Core Female Connector x 1;
  • MTP or MPO 12 Core Male Connectors x 2;

Loss Parameters

  • MTP/MPO end: max <0.35dB@850nm;
  • MTP/MPO end: typical <0.10dB@850nm;

Wiring diagram

  • TX side
    MTP / MPO 24 Fiber #
    MTP / MPO 12 Fiber #
    Fiber Color
    S-1
    A-12
    Blue
    S-2
    A-11
    Orange
    S-3
    A-10
    Green
    S-4
    A-9
    Brown
    S-5
    A-8
    Grey
    S-6
    A-7
    White
    S-7
    A-6
    Red
    S-8
    A-5
    Black
    S-9
    A-4
    Yellow
    S-10
    A-3
    Purple
    S-11
    A-2
    Pink
    S-12
    A-1
    Aqua
  • RX side
    MTP / MPO 24 Fiber #
    MTP / MPO 12 Fiber #
    Fiber Color
    S-13
    B-1
    Blue *
    S-14
    B-2
    Orange *
    S-15
    B-3
    Green *
    S-16
    B-4
    Brown *
    S-17
    B-5
    Grey *
    S-18
    B-6
    White *
    S-19
    B-7
    Red *
    S-20
    B-8
    Black *
    S-21
    B-9
    Yellow *
    S-22
    B-10
    Purple *
    S-23
    B-11
    Pink *
    S-24
    B-12
    Aqua *
