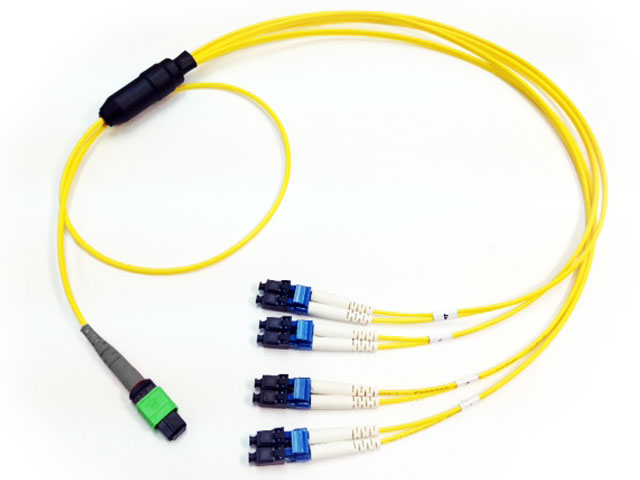

| MTP - 4xLC duplex SM |
 |
|
Description
- It is 4x10Gb to 1x40Gb trunk / jumper solution;
- Only 8 fibers are required;
- The total length is customerized;
- The ordering part number is: RH94698R1DCB9H1-XXX where XXX is total length
Materials
- 8 Cores 9/125 G657A1 mini OFNR 3mm Round Yellow Cable;
- MTP or MPO 12 Core Female Connector x 1;
- LC duplex x 4 pairs;
Loss Parameters
- MTP/MPO end: max <0.35dB@1310nm;
- MTP/MPO end: typical <0.10dB@1310nm;
- LC ends: max <0.25dB@1310nm
Wiring diagram
|
MTP Fiber #
|
LC Fiber #
|
Fiber Color
|
|
S-1
|
1B
|
Blue
|
|
S-2
|
2B
|
Orange
|
|
S-3
|
3B
|
Green
|
|
S-4
|
4B
|
Brown
|
|
S-5 (Not Used)
|
N/A
|
N/A
|
|
S-6 (Not Used)
|
N/A
|
N/A
|
|
S-7 (Not Used)
|
N/A
|
N/A
|
|
S-8 (Not Used)
|
N/A
|
N/A
|
|
S-9
|
4A
|
Yellow
|
|
S-10
|
3A
|
Purple
|
|
S-11
|
2A
|
Pink
|
|
S-12
|
1A
|
Aqua
|
|
|
|
|
 |
